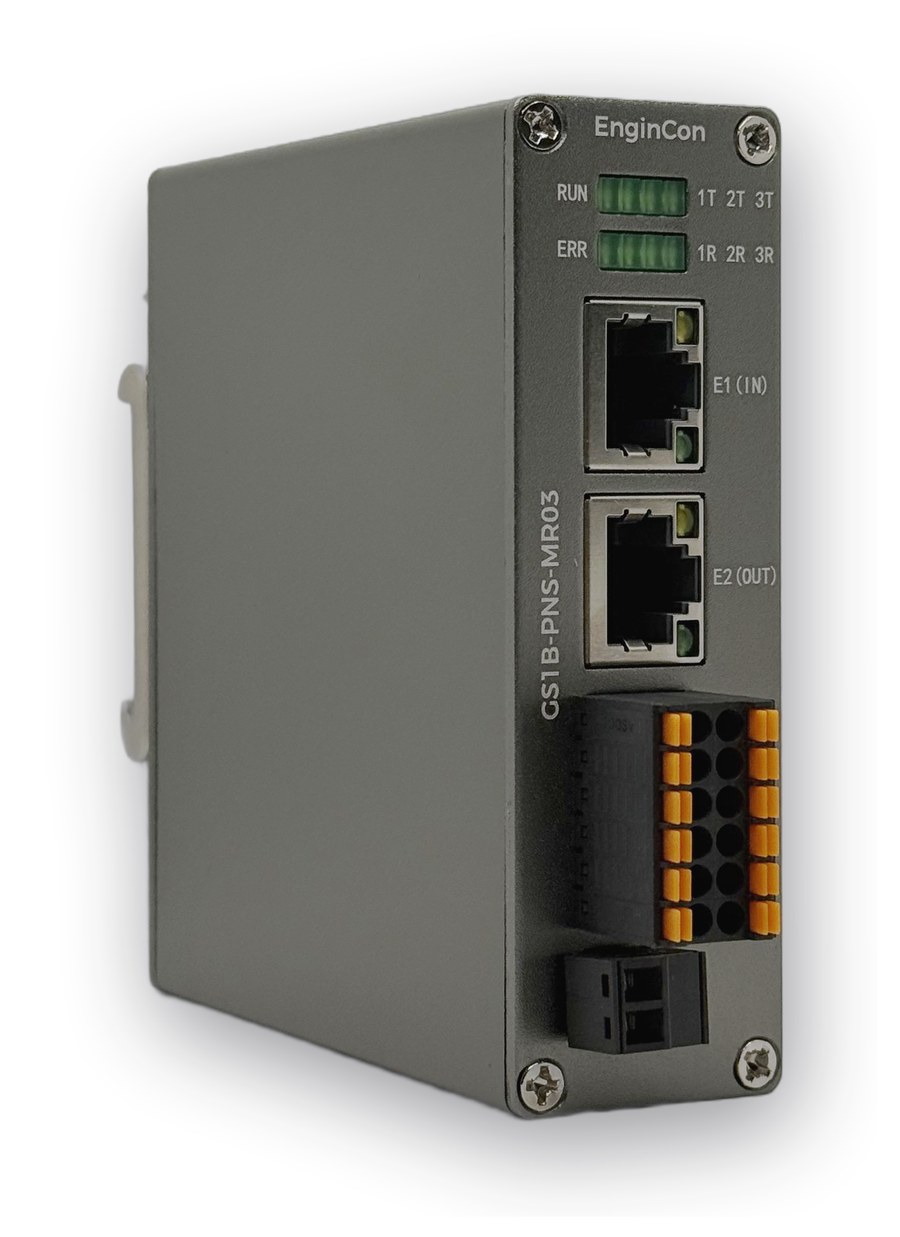

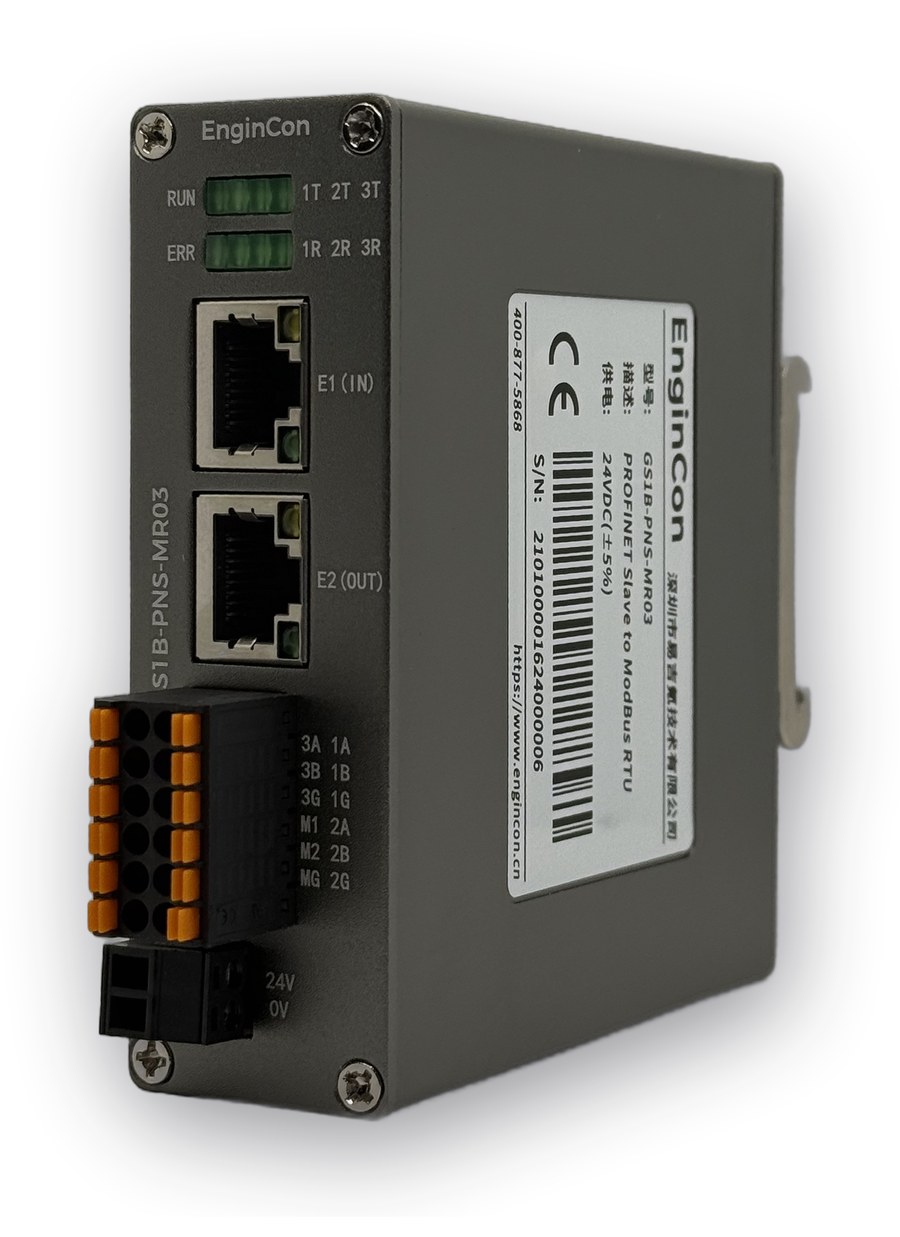

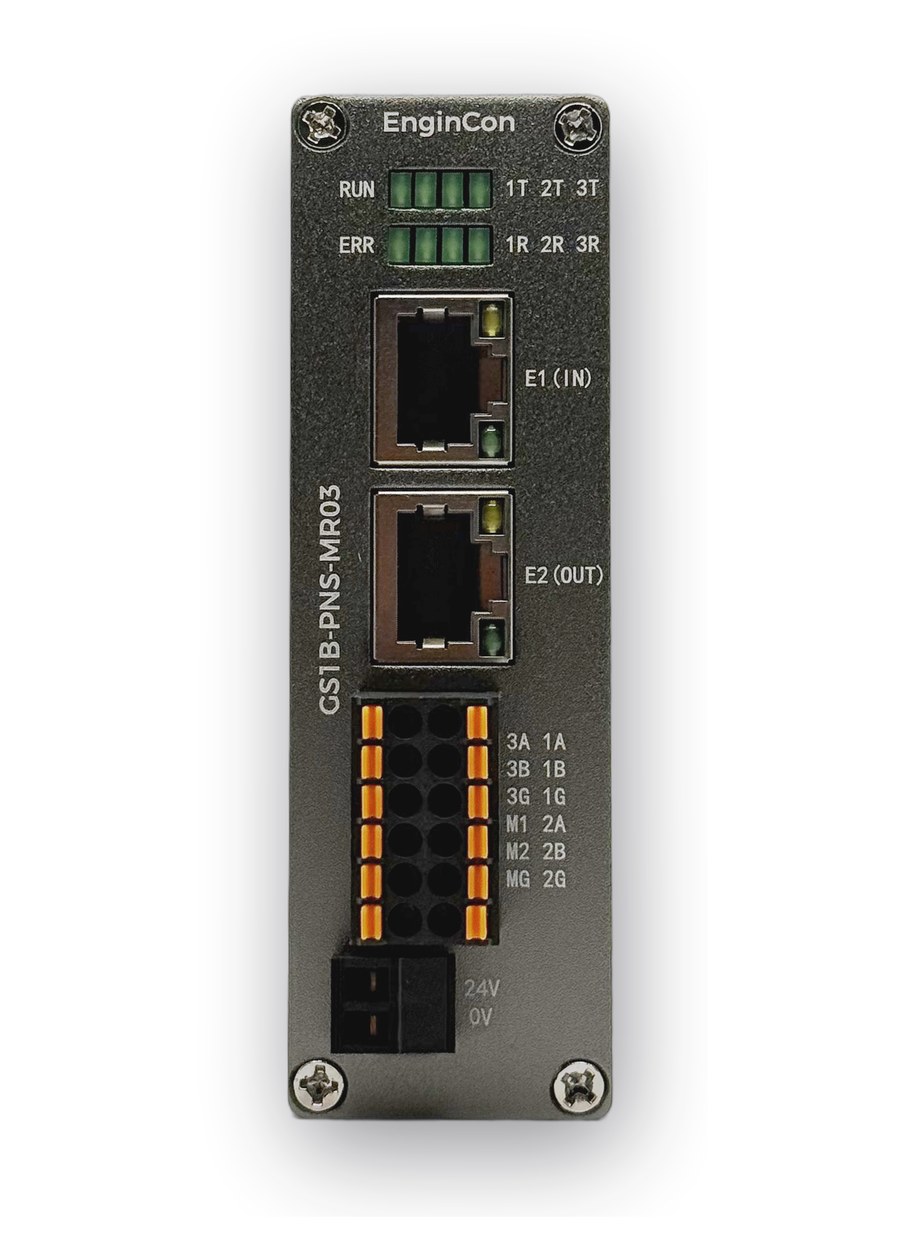

GS1B-PNS-MR03 Three-Channel Protocol Gateway

PROFINET-to-Modbus RTU three-channel protocol gateway: a PROFINET slave with 3 independent Modbus RTU (master) channels for connecting RTU devices to PROFINET networks

Key Features

Standard PROFINET I/O slave
Up to 128 slots, 1440 bytes of process data (I/O data)
3 independent Modbus RTU master channels (RS485), up to 128 configured Modbus commands
Serial port baud rate: 1200 to 115200 baud
24 V DC power supply (±5%), 3.5 W power consumption
Operating temperature -25 to +55 °C, IP20 protection
35 mm DIN rail mounting, compact 30 × 95 × 114 mm housing

Description

GS1B-PNS-MR03 enables data communication between PROFINET networks and Modbus RTU networks, allowing field devices with RTU interfaces — sensors, stepper drives, smart measuring devices, instruments and PLCs — can be connected to a PROFINET network with minimal effort.

The gateway provides 3 independent Modbus RTU (RS485) channels (up to 128 configured commands) and supports the standard PROFINET I/O protocol with up to 128 slots and 1440 bytes of exchanged data. Configuration is straightforward and no complex programming is needed.

Specifications

Protocol Support

PROFINET Slave / Modbus RTU Master

PROFINET I/O Capacity

Up to 128 slots / 1440 bytes of process data (I/O data)

Modbus Channels

3 × independent RS485 serial channels, Modbus RTU master

Serial Port Baud Rate

1200 to 115200 baud

Power Supply

24 V DC ±5%, 3.5 W

Operating Temperature

-25 to +55 °C

Ingress Protection

IP20

Dimensions (W × H × D)

30 × 95 × 114 mm

Mounting

35 mm DIN rail
